ABSTRACT

Purpose: To examine changes in the eyes after cold compress application at the early stage.
Method: A total of 62 eyes from 62 healthy adult participants were included in this cross-sectional and comparative study. The subfoveal choroidal thickness and retinal nerve fiber thickness were measured by spectral-domain ocular coherence tomography. The central corneal thickness, anterior segment volume and depth, iridocorneal angle, and pupil diameter were measured by means of the Scheimpflug anterior segment imaging method. The measurements were repeated after 10 min of cold compress application, which was applied using special packs. The procedures were then repeated with non-cold packages to exclude the effect of pressure.
Results: The average age of the participants was 30.74 ± 5.82 years. There was no significant change in the central corneal thickness after cold compress application, and there was a significant decrease in the anterior segment volume (p<0.001), anterior segment depth (p<0.001), and pupil diameter. Moreover, the iridocorneal angle increased (p=0.002). The subfoveal choroidal thickness decreased after the application of cold compress (p<0.001). The overall disk thickness (p=0.034) and superior nasal scale (p=0.007) significantly decreased after the cold compress was administered during the evaluation of optic nerve fiber thickness. In contrast to that with the cold application, the subfoveal choroidal thickness and optic nerve fiber thickness did not change after the non-cold compress application (p>0.05).
Conclusion: Cold compress application may thus cause some physiological changes in the eyes, which necessitates the examination of its usage and effects.

Keywords: Glaucoma; Optic nerve injury; Eye injuries; Vasoconstriction; Cryotherapy/instrumentation; Tomography, optical coherence

RESUMO

Objetivos: Examinar as mudanças nos olhos após a aplicação com compressa fria.
Método: Sessenta e dois olhos de 62 adultos saudáveis foram incluídos neste estudo transversal e comparativo. A espessura da coróide subfoveal e a espessura da fibra nervosa retiniana foram mensuradas por tomografia de coerência óptica de domínio espectral (OCT). A espessura central da córnea, o volume e a profundidade do segmento anterior, o ângulo iridocorneano e o diâmetro da pupila foram mensurados por meio do método de imagem do segmento anterior de Scheimpflug. As medições foram repetidas após 10 minutos de aplicação de compressas frias, aplicadas com embalagens especiais. Os procedimentos foram repetidos com embalagens não frias para excluir o efeito da pressão.
Resultados: A média de idade dos participantes foi de 30,74 ± 5,82 anos. Embora não tenha havido alteração significativa na espessura central da córnea após a aplicação da compressa fria, houve diminuição significativa no volume do segmento anterior (p<0,001), na profundidade do segmento anterior (p<0,001) e no diâmetro da pupila. Além disso, o ângulo iridocorneano aumentou (p=0,002). A espessura da coróide subfoveal diminuiu após a aplicação da compressa fria (p<0,001). A espessura total do disco (p=0,034) e a escala nasal superior (p=0,007) diminuíram significativamente após a administração da compressa fria durante a avaliação da espessura da fibra do nervo óptico. Ao contrário da aplicação com compressa fria, a espessura da coróide subfoveal e a espessura da fibra do nervo óptico não mudaram após a aplicação da compressa não fria (p>0,05).
Conclusão: A aplicação de compressa fria pode causar algumas alterações fisiológicas nos olhos e o seu uso e efeitos devem ser observados.

Descritores: Glaucoma; Traumatismo do nervo óptico; Traumastismo ocular; Vasoconstrição; Crioterapia/instrumentação; Tomografia de coerência óptica

INTRODUCTION

Cold application is a proven treatment approach for soft tissue traumas^(1-4) and post-nerve injuries^(5,6) in terms of reducing inflammation and maintaining tissue viability. Inflammatory situations cause dilation at the vessels via the mediator. As a result, the interstitial fluid leakage from the blood vessels occurs. The vasoconstriction in the vessels after cold application leads to a reduction in leakage and consequently in the reduction of edema^(7,8). This finding supports the prevention of damage by slowing the metabolism through the ions and membrane potential in the neurons^(9,10).

Cold application is not a widely used method as a primary treatment in ophthalmology, but it is used for relief by patients in the face of diseases such as ocular allergic conditions and adenoviral conjunctivitis. Cold compress application packs have recently been produced with this purpose in mind. Some studies have suggested that it can be used to reduce the nerve destruction associated with optic neuropathy⁽¹¹⁾ to reduce the complications of iridoplasty⁽¹²⁾ and in conjunction with analgesia before intravitreal injection⁽¹³⁾. In the present study, we aimed to observe the ocular changes after cold compress application. The main purpose of this research was to analyze the response of the eye to coldness, which has a choroid-rich vein network. It is possible that, subsequently, cold compress application may be used as a treatment method under the inflammatory conditions, such as retinal and uveal inflammatory conditions. In light of the data obtained, we can question the availability of cold compress application as a treatment method in case of acute angle closure.

METHODS

The present study was initiated at our university hospital when we sought the permission of 64 healthy adult participants. A signed informed consent form was obtained from all participants after receiving an explanation about the nature and the possible consequences of the research at the time of study enrollment. Only the right eyes of the participants were studied. Two participants were excluded from our research due to the detection of eye disease (e.g., suspected glaucoma and central serous chorioretinopathy) at the initial stages. The study was conducted in line with the Declaration of Helsinki and approved by non-interventional clinical research ethics committee of the Pamukkale University.

Study population

The participants were selected from healthy individuals of age 20-40 years. Before starting the study with all individuals, a standard eye examination was applied, which involved the use of an autorefractometer, a test of visual acuity, biomicroscopy, tonometry, and a retinal examination. Patients with a refraction defect of over ± 2.00 diopter, those having ocular surgery, and those with any ocular disease or systemic chronic disease were excluded. In all the participants, the corrected visual acuity was measured as 20/20 by the logMAR chart.

Measurements

In the afternoon, the participants were examined while they were not hungry and had not consumed any caffeine. Optic disc nerve fiber imaging was performed in the presence of spectral-domain optical coherence tomography (OCT) (Spectralis^® software version 6.0, Heidelberg, Germany) as was choroid imaging in the simultaneously enhanced depth optical coherence tomography mode. Spectralis^®, which takes 40,000 scans per second and utilizes the spectral-domain technique with a wavelength of 870 nanometer, was used for this purpose.

The choroidal thickness was measured manually using the instrument program (Heidelberg Eye Explorer 1.7.0.0) as the distance between the outer edge of the hyper-reflective retinal pigment epithelium from the subfoveal region and the inner edge of the sclera. Specific attention was paid to ensure that the image quality was sufficiently sharp for the scleral and choroidal tissues to distinguish them from each other. Repeats were performed when the image quality was unsatisfactory.

The measurements of anterior segment depth, anterior segment volume, iridocorneal angle, central corneal thickness, and pupil diameter measurements were performed with the Pentecam HR (Oculus, Wetzlar, Germany). Pentacam HR is a rotating Scheimpflug camera system that analyzes up to 50 high-resolution slit images for the frontal segment analysis. Scheimpflug images of the participants were examined by scanning with this system, and the repeats were performed for those whose image quality was insufficient. After all these measurements were made, the participants had the cold packs administered to them (TheraPearl Eye-ssential Mask, Bausch & Lomb) for 10 min (Figure 1) (The pack dimensions were 9 x 2.75 inches, and the pack was filled with pliable gel pearls). Before application, the mask was left in a freezer set to 0°C (32 Fahrenheit) for 2 h; the temperature was selected based on the recommendations of a similar study published by Lee et al.⁽¹¹⁾. After the application, the previous measurements were repeated in the same order and under the same conditions. Meanwhile, during the application, pressure was applied to the eye, a factor that may have affected the said measurements. Consequently, the experiment was repeated after 1 week with the non-cold pack so as to distinguish between the effects of temperature and pressure. The measurements were made prior to the application, after which the non-cold pack was kept at the room temperature for 2 h before being applied for 10 min prior to the measurements being repeated. The measurements before the cold and non-cold compress applications were subsequently evaluated and did not reveal any significant difference between them. Therefore, the mean of the measurements before the applications was calculated and used in the statistical analysis as “The Measurements Before the Applications”.

Figure 1. Participants subjected to the cold mask application (TheraPearl Eye-ssential Mask, Bausch & Lomb) for 10 min.

Statistical analysis

The statistical analysis was performed using the Statistical Package for the Social Sciences for Windows (Version 21.0, SPSS Inc., Chicago, IL, USA) after the data was transferred to the computer. The normality of data was examined using the Kolmogorov-Smirnov test, while the sample size was selected by taking α=0.05, β=0.20, and the standard effect size = 0.70 from the t-test table. Analyses were performed using a paired sample t-test for before and after comparisons. P<0.05 were considered to be significant. Descriptive findings were expressed as mean ± standard deviation (SD).

RESULTS

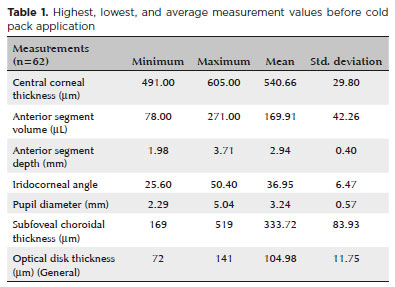

A total of 62 right eyes of 62 participants were included in the study. The average age (± SD) of the participants was 30.74 ± 5.82 years. A total of 32 of these participants were women (51.6%). The highest, lowest, and the average measurement values before the applications are shown in table 1.

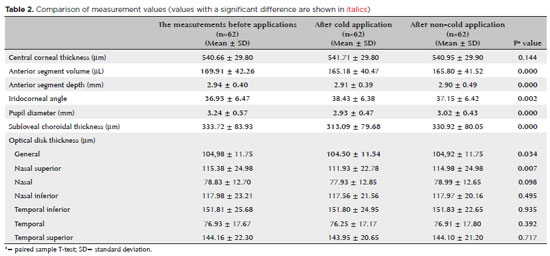

A significant decrease in the anterior segment volume (p<0.001), anterior segment depth (p<0.001), and pupil diameter (p<0.001) were noted, although there was no significant change in the central corneal thickness after the cold compress application. The iridocorneal angle increased (p=0.002), while the subfoveal choroidal thickness decreased after cold compress application (p>0.001). After the cold pack was employed, the overall disc thickness (p=0.034) and superior nasal scale (p=0.007) were significantly reduced during the evaluation of optic disc nerve fiber thickness. The differences in other quadrants were however not significant.

Conversely, optic disc nerve fiber thickness (p=0.95) and subfoveal choroidal thickness (p=0.92) did not change after the non-cold compress application. For anterior segment measurements, similar to that in the aftermath of cold compress application, a significant decrease in the anterior segment volume (p<0.001), anterior segment depth (p<0.001), and pupil diameter (p=0.012) were noted. The iridocorneal angle was however increased (p=0.005).

DISCUSSION

Applying a cold substance to an injured area is quite an old recovery and symptom relieving method practiced in the general medical. Nevertheless, there is no clear approach related to its usage in the field of ophthalmology. In this study, our goal was to observe how the use of cold packs impact the eyes. For this purpose, we investigated whether cold compress applications can reduce choroid and optic disc nerve fiber thickness and whether the pressure applied with the cold pack can lead to changes in the anterior chamber.

This research demonstrated the existence of a decrease in the choroidal thickness of the participants after cold compress application (p<0.001). However, no other changes were witnessed after the non-cold compress application. Thus, we believe that the said change was not a consequence of pressure, rather it was an effect of the colder temperature. Vasoconstriction of the blood vessels may be responsible for the decrease in the tissue thickness, including choroids where the blood vessels are extremely dense. Lee et al. noted that the temperature dropped to <37°C in the eye after 10 min of local cold compress application⁽¹¹⁾. Furthermore, Shepherd et al. showed that cooling between 28°C and 37°C causes the vessels to contract by increasing the adrenoreceptor sensitivity⁽⁷⁾. As a result, the intraocular decline in the temperature after cold compress application may cause the vessels to contract. Moreover, Schaser et al. showed that capillary permeability is seriously reduced after cold application, which may contribute to the regulation of microcirculation⁽²⁾. As a part of their own study findings, Hodges et al. argued that there is a decrease in nitric oxide synthase activity after cold application and suggested it to be a contributing factor to vasoconstriction⁽¹⁴⁾. Khoshnevis et al. also reported that the vasoconstriction effect after cold application may continue even after the end of the application⁽¹⁵⁾. According to several different studies, central serous chorioretinopathy is abnormal in terms of microvasculature and circulation^(16,17). In fact, there is also a debate about whether the increase in nitric oxide concentration is an effect caused by the etiology of SSROP⁽¹⁸⁾. When scrutinizing all this data, it is reasonable to assume that cold compress application can contribute to treatment in pachycorrhoid cases, such as central serous chorioretinopathy (SSRP), where capillary permeability and choroidal thickening can occur.

From the results obtained in this study, we noted that cold compress application could reduce the thickness of the optic nerve fiber, while non-cold compress application had no such effect. Consequently, we believe that the decrease in the thickness of the optic nerve is dependent on temperature and that this decrease may be the result of changes in the vessels. Based on these findings, we demonstrated that cold and non-cold compress application can similarly affect the anterior segment parameters. These effects did not probably result from the cold application, rather from the local pressure of the cold application pack, because there was no significant difference in the anterior segment parameters between these variables. It is indeed possible that the decrease in the anterior segment volume and the anterior segment depth may be due to the effect of pressure. An increase in the iridocorneal angle may also have occurred due to the pressure-resultant effect, which is similar to that of indentation. Meanwhile, Forbes demonstrated that the angle expanded and that the iris root was pushed backward after indentation^(19,20). There is therefore a need for additional research to determine whether the decrease in the pupil diameter is a resulting factor of the applied pressure or the effect of the administration of coldness. Considering the outcome of cold compress application on the anterior segment, it may be logical to use this treatment approach for acute angle closure glaucoma. In addition to the changes in the iris, the feeding of the optic nerve, which is adversely impacted by the increased effect of pressure during the glaucoma crisis and the protective effect of cold at ischemia, also possibly benefits.

On the flip side, besides the possible benefits, cold application can be harmful in some cases like flammer syndrome and open-angle glaucoma. Flammer syndrome refers to a phenotype characterized by the presence of primary vascular dysregulation together with a cluster of additional symptoms and signs⁽²¹⁾. Terelak-Borys et al. demonstrated that cold provocation induced a transient visual field deterioration in the glaucoma patients with flammer syndrome⁽²²⁾. Vasospasm and elevated plasma endothelin-1 level have also been associated with glaucoma (especially normal tension glaucoma)⁽²³⁾. In addition, Nicolela et al. showed that patients with glaucoma have an abnormal increase in their plasma endothelin-1 levels after the body cools down⁽²⁴⁾.

The fact that the number of participants used in this study was less may be detrimental to the validity of our findings. The participants selected for our analysis were healthy people without any systemic/eye diseases. In the face of different illnesses, the results could have varied. The manual preparation of choroidal thickness analysis and the difficulties presented in ensuring standardization may also have affected the measurement outcomes. On the other hand, study-related hypotheses were set up according to the immediate effect of cold compress application, albeit this research did not examine the long-term effects of cold compress application.

In light of our study results, we noted that the cold application packs can induce physiological changes at the early stage in the eye structure including in the retina and choroid. Cold application is a frequently used treatment modality in the general medical literature, and there remains insufficient data available on its uses in ophthalmology. More analysis is therefore warranted to uncover how the resulting changes in the eye emerges and how these effects can be utilized in ophthalmology. Certainly, research relating to cold compress application on patients with different ophthalmologic diseases is required to further validate our findings.

REFERENCES

1. Barca I, Colangeli W, Cristofaro MG, Giudice A, Giofrè E, Varano A, et al. Effects of cold therapy in the treatment of mandibular angle fractures: hilotherm system vs ice bag. Ann Ital Chir. 2016;87:411-6.

2. Schaser KD, Stover JF, Melcher I, Lauffer A, Haas NP, Bail HJ, et al. Local cooling restores microcirculatory hemodynamics after closed soft-tissue trauma in rats. J Trauma, 2006;61(3):642-9.

3. Golovina EP. [Result of treatment by local cooling in closed soft tissue injury]. Vestn Khir Im I I Grek. 1958;80(6):78-85. Russian.

4. Konrath GA, Lock T, Goitz HT, Scheidler J. The use of cold therapy after anterior cruciate ligament reconstruction. A prospective, randomized study and literature review. Am J Sports Med. 1996;24(5):629-33.

5. Walter A, Finelli K, Bai X, Johnson B, Neuberger T, Seidenberg P, et al. Neurobiological effect of selective brain cooling after concussive injury. Brain Imaging Behav. 2018;12(3):891-900.

6. Martirosyan NL, Patel AA, Carotenuto A, Kalani M, Bohl M, Preul M, et al. The role of therapeutic hypothermia in the management of acute spinal cord injury. Clin Neurol Neurosurg. 2017;154:79-88.

7. Shepherd JT, Rusch NJ, Vanhoutte PM. Efect of cold on the blood vessel wall. Gen Pharmacol. 1983;14(1):61-5.

8. Maeda H, Kurose T, Nosaka S, Kawamata S. Microvascular circulation at cool, normal and warm temperatures in rat leg muscles examined by histochemistry using Lycopersicon esculentum lectin. Acta Histochem. 2014;116(6):1096-103.

9. Stephanova DI, Daskalova M. Effects of temperature on simulated electrotonic potentials and their current kinetics of human motor axons at 20 degrees C-42 degrees C. J Integr Neurosci. 13(3):447-64.

10. Howells J, Czesnik D, Trevillion L, Burke D. Excitability and the safety margin in human axons during hyperthermia. J Physiol[Internet]. 2014 [cited 2020 Jan 21]; 2013;591(12):3063-80. Available from: doi: 10.1113/jphysiol.2012.249060

11. Lee HB, Shoshani YZ, Sokol J, Smith H, Stevens E, Nunery WR.. The assessment of orbital apical temperature change with local cool compress application. Ophthalmic Plast Reconstr Surg. 2011;27(6):414-6.

12. Kataoka T, Zako M, Takeyama M, Ohno-Jinno A, Sugenoya J, Iwaki M. Cooling prevents induction of corneal damage by argon laser peripheral iridotomy. Jpn J Ophthalmol. 2007;51(5);317-24.

13. Lindsell LB, Miller DM, Brown JL. Use of topical ice for local anesthesia for intravitreal injections. JAMA Ophthalmol [Internet]. 2014 [cited 2020 Jan 21];1328):1010-1. doi:10.1001/jamaophthalmol.2014.1397

14. Hodges GJ, Zhao K, Kosiba WA, Johnson JM. The involvement of nitric oxide in the cutaneous vasoconstrictor response to local cooling in humans. J Physiol [Internet]. 2006 [cited 2020 Jun 21];154(Pt 3):849-57. Available from: doi:10.1113/jphysiol.2006.109884

15. Khoshnevis S, Craik NK, Diller KR. Cold-induced vasoconstriction may persist long after cooling ends: an evaluation of multiple cryotherapy units. Knee Surg Sports Traumatol Arthrosc [Internet]. 2015 [cited 2020 Jan 12];23(9):2475-83. Available from:doi:10.1007/s00167-014-2911-y

16. Yu L, Shao Y, Chai Y, Ye LH, Yang QC, Ye L, et al. Retinal microvasculature alteration in central serous chorioretinopathy. Mol Med Rep [Internet]. 2018 [cited 2020 Feb 21];17(2):2335-40. Available from: doi:10.3892/mmr.2017.8126

17. Wang NK, Fu Y, Wang JP, Kang EY, Wu AL, Tseng YJ, et al. Peripheral Vascular Endothelial Dysfunction in Central Serous Chorioretinopathy. Invest Ophthalmol Vis Sci [Internet]. 2017 [cited 2020 Apr 21];58(11):4524-9. Available from: doi:10.1167/iovs.17-21825

18. Smal C, Lepièce G, Bonnet S. [Central serous chorioretinopathy following the use of phosphodiesterase 5 inhibitors]. Rev Med Liege. 2017;72(11):475-7. French.

19. Forbes M. Gonioscopy with corneal indentation. A method for distinguishing between appositional closure and synechial closure. Arch Ophthalmol. 1966;76(4):488-92.

20. Bruno CA, Alward WL. Gonioscopy in primary angle closure glaucoma. Semin Ophthalmol. 2002;17(2):59-68.

21. Flammer J, Konieczka K, Flammer AJ. The primary vascular dysregulation syndrome: implications for eye diseases. EPMA J [Internet]. 2013 [cited 2020 Jan 27];4(1):14 Available from: doi: 10.1186/1878-5085-4-14.

22. Terelak-Borys B, Grabska-Liberek I, Schoetzau A, Konieczka K. Transient visual field impairment after cold provocation in glaucoma patients with Flammer syndrome. Restor Neurol Neurosci [Interent]. 2019 [cited 2019 Dec 21];37(1):31-9. Available from: doi: 10.3233/RNN-180866.

23. Sugiyama T, Moriya S, Oku H, Azuma I. Association of endothelin-1 with normal tension glaucoma: clinical and fundamental studies. Surv Ophthalmol. 1995;39 Suppl 1:S49-56.

24. Nicolela MT, Ferrier S, Morrison C, Archibald ML, LeVatte T, Wallace K, et al. Effects of cold-induced vasospasm in glaucoma: the role of endothelin-1. Invest Ophthalmol Vis Sci [Internet]. 2003 [cited 2019 Nov 24];44(6):2565-72. Available from: doi: 10.1167/iovs.02-0913

Submitted for publication: July 20, 2020.
Accepted for publication: October 20, 2020.

Approved by the following research ethics committee: Pamukkale University Non-interventional Clinical Research Ethics Committee (#60116787-020\4320)

Funding: This study received no specific financial support

Disclosure of potential conflicts of interest: None of the authors have any potential conflicts of interest to disclose
