ABSTRACT

Mutations in the ABCA4 gene are a common cause of Stargardt disease; however, other retinal phenotypes have also been associated with mutations in this gene. We describe an observational case report of an unusual clinical phenotype of Stargardt disease. The ophthalmological examination included best corrected visual acuity, color and autofluorescence photography, fluorescein angiography, optical coherence tomography, and electrophysiology tests. Targeted next-generation sequencing of 99 genes associated with inherited retinal dystrophies was performed in the index patient. A 48-year-old woman presented with a best corrected visual acuity of 20/25 and 20/20. Fundoscopy revealed perifoveal yellow flecked-like lesions. Fluorescein angiography and fundus autofluorescence findings were consistent with pattern dystrophy. Pattern electroretinogram demonstrated bilateral decrease of p50 values. Genetic testing identified two heterozygous missense mutations, c.428C>T, p.(Pro143Leu) and c.3113C>T, p.(Ala.1038Val), in the ABCA4 gene. Based on our results, we believe that these particular mutations in the ABCA4 gene could be associated with a specific disease phenotype characterized by funduscopic appearance similar to pattern dystrophy. A detailed characterization of the retinal phenotype in patients carrying specific mutations in ABCA4 is crucial to understand disease expression and ensure optimal clinical care for patients with inherited retinal dystrophies.

Keywords: Stargardt disease/diagnosis; Retinal dystrophies; ATP-binding cassette transporter, subfamily A, member 4; Tomography, optical coherence; Electroretinography; Fluorescein angiography

RESUMO

Mutações no gene ABCA4 são causa comum da doença de Stargardt, mas outros fenótipos da retina também foram associados a mutações nesse gene. Apresentamos um relato de caso observacional de um fenótipo clínico incomum da doença de Stargardt. O exame oftalmológico incluiu a acuidade visual com melhor correção, fotografia em cores e com autofluorescência, angiofluoresceinografia, tomografia de coerência óptica e testes de eletrofisiologia. Na paciente em questão, realizou-se o sequenciamento de próxima geração de 99 genes associados a distrofias retinais hereditárias. Tratava-se de uma mulher de 48 anos com melhor acuidade visual corrigida de 20/25 e 20/20. A fundoscopia revelou lesões puntiformes amarelas perifoveais. Os resultados da angiofluoresceinografia e da autofluorescência do fundo de olho foram consistentes com distrofia em padrão. A eletrorretinografia por padrões mostrou diminuição bilateral dos valores de p50. Os testes genéticos revelaram duas mutações missense heterozigóticas, c.428C>T, p. (Pro143Leu) e c.3113C>T, p. (Ala.1038Val), no gene ABCA4. Nossos resultados nos fazem pensar que essas mutações específicas em ABCA4 talvez possam estar associadas a um fenótipo específico da doença, caracterizado por uma aparência fundoscópica semelhante à da distrofia em padrão. Uma caracterização detalhada do fenótipo da retina em pacientes portadores de mutações específicas em ABCA4 é crucial para compreender a expressão da doença e para garantir o tratamento clínico ideal para pacientes com distrofias retinais hereditárias.

Descritores: Doença de Stargardt/diagnóstico; Distrofias retinianas; Membro 4 da Subfamília A de transportadores de cassetes de ligação de ATP; Tomografia de coerência óptica; Eletrorretinografia; Angiofluoresceinografia

INTRODUCTION

Autosomal recessive Stargardt disease (STGD1; MIM 248200) is the most common inherited macular dystrophy in both children and adults, which is caused by pathogenic variants in the ATP-binding cassette transporter type A4 (ABCA4) gene⁽¹⁾. Individuals affected with STGD1 exhibit variable age at onset and heterogeneous phenotypes, with the early-onset group (generally observed before the age of 10 years) experiencing the most severe phenotype, clinically resembling severe autosomal recessive cone-rod dystrophy (arCRD)^(1-3). Different combinations of ABCA4 variants have been suggested to explain the different phenotypes, including other macular dystrophies such as pattern dystrophy^(3-5), and the degree of severity of ABCA4-associated retinopathies. The combination of frequent, low-penetrant variants and severe variants, or two moderately severe variants, has been associated with a milder, late-onset disease, whereas a combination of moderately severe and severe variants or two severe variants has been proposed to cause early-onset Stargardt disease or arCRD^(6-7).

CASE REPORT

We report the case of a 48-year-old woman who presented for a routine ophthalmoscopic examination. All investigations were performed according to the tenets of the Declaration of Helsinki with approval from the Institutional Review Board of the University of Tuebingen. The routine ophthalmoscopic examination included best corrected visual acuity (BCVA, Snellen 20 feet), which for our patient was 20/25 in the right eye and 20/20 in the left eye. Color and autofluorescence fundus (AF) photographs after pupil dilation using 1% tropicamide and fundus fluorescein angiography (FA) (Topcon Model TRC-50DX, Topcon Medical System, Oakland, NJ, USA) are depicted in figure 1, which highlight how the foveal area is perfectly preserved from the material accumulation in all three images. Moreover, spectral-domain optical coherence tomography (SD-OCT) macular scans images were taken (Heidelberg Engineering, Heidelberg, Germany) as shown in figure 2, which indicates the presence of foveal spare as well. A minimally altered photoreceptor layer is observed in the fovea explaining the low visual loss, which the patient had not realized until the measurement of BCVA. All these findings revealed an entity similar to a pattern dystrophy, which was our first option in the differential diagnosis. Electrophysiology tests were performed according to the recommendations of the International Society for Electrophysiology of Vision (ISCEV), and the results were more probably against the diagnosis of a pattern dystrophy. Electrooculography revealed a ratio of the light peak to dark trough or an Arden ratio >1.8 bilaterally (within normal limits, which could also correspond to a pattern dystrophy in an early stage), full-field electroretinography (ERG) revealed normal scotopic and photopic responses, and pattern ERG disclosed bilateral decrease of p50 values. On the basis of these results, we can conclude the presence of a bilateral macular affectation without diffuse involvement of retinal-dependent responses and with preservation of integrity of the outer retinae (pigmentary epithelium – photoreceptor outer segment).

Figure 1. Ophthalmological examination A) Retinography showed perifoveal yellowish fleck-like lesions encircling the foveal area. B) AF revealed intense hyperautofluorescent rounded lesions (corresponding to the yellowish flecks) compatible with accumulation of liposfuscin-like material surrounded by an hypoautofluorescent halo corresponding to electroretinography (RPE) atrophy C) FA disclosed perifoveal rounded hypofluorescent lesions surrounded by hyperfluorescent areas both isolates and confluent (RPE atrophy) simulating argon photocoagulation laser impacts.

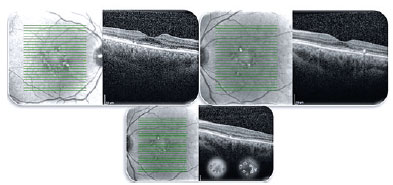

Figure 2. SD-OCT image showed material in the subretinal space between the photoreceptors and RPE. They appear as melanolipofuscin accumulation in AF and hypofluorescence in FA.

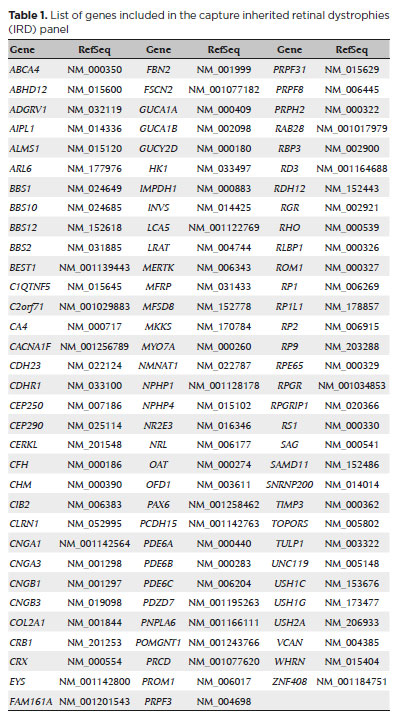

Genetic testing in the index patient using targeted next-generation sequencing (SeqCap^® EZ Choice Enrichment kit, Roche NimbleGen and the Illumina NextSeq500 sequencer) of 99 genes associated with inherited retinal dystrophies (IRD) (Table 1) revealed two compound heterozygous variants, c.428C>T, p.(Pro143Leu) and c.3113C>T, p.(Ala.1038Val), in the ABCA4 gene, typically altered in Stargardt disease. No additional candidate variants were identified in the IRD-related genes examined in this study. Segregation analysis showeed that each of the parents was heterozygous for one of the two variants (Figure 3), which have been previously reported as pathogenic (c.3113C>T) or likely pathogenic (c.428C>T) mutations in public databases (ClinVar Variation ID 7894 and ID 99273, respectively; accessed October 28, 2019).

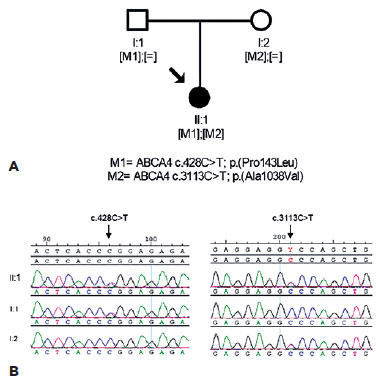

Figure 3. Genetic diagnosis of the analyzed family. A) Pedigree of the family showing the co-segregation analysis results. B) Sanger sequencing confirming the presence of two compound heterozygous ABCA4 variants, c.3113C>T (exon 4) and c.428C>T (exon 21), in affected individual (II:1) and the heterozygous variant in her parents (I:1 and I:2).

DISCUSSION

Identifying novel genotype-phenotype relationships is currently a major area of interest. In the current report, we suggest a novel correlation between the presence of ABCA4 variants and the development of an unusual clinical phenotype of Stargardt disease. Although genetic disorders are, in general, individually rare, and obtaining sufficient number of cases is not always possible, additional cases with a similar genotype-phenotype correlation should be recruited and analyzed for establishing reliable genotype–phenotype correlations.

Previous studies have proposed a genotype-phenotype correlation model for ABCA4 variants in which, depending on the mild or severe nature of these variants and the residual activity of the mutant protein, the clinical phenotypes can range from a mild, late-onset disease to early-onset, more severe disorders^(6-7). Although the c.3113C>T variant is significantly enriched in Caucasian patients with retinal dystrophy, it has been considered as a mild allele as it was not detected in a homozygous state in patients, although this was expected based on its high frequency in the Exome Aggregation Consortium database (ExAC; http://exac.broadinstitute.org/). Moreover, the presence of two homozygous individuals in the control population confirmed the mild nature of this variant. In contrast, although reported in ClinVar as a likely pathogenic variant, the pathogenicity of c.428C>T remains controversial. This variant has not been found to be significantly enriched in patients with STGD1, although its frequency is higher in the cohort than in the control population. Furthermore, no homozygous healthy individuals have been described till date, whereas one individual with STGD1 was reported to be homozygous for the c.428C>T variant⁽⁸⁾. This finding argues for a relatively severe effect of c.428C>T. These results together with the family segregation studies suggest that this variant is pathogenic and the cause, together with c.3113C>T, of the retinal phenotype in this patient. Considering the mild loss of vision and the age of the patient, which indicates a chronic slow progressive course of retinopathy and in addition to the fundus and OCT appearance, where the accumulation of lipofuscin at the level of the retinal pigment epithelium is a typical characteristic feature⁽⁹⁾, pattern dystrophy could be a possible diagnosis⁽¹⁰⁾ or as in this case, like another macular dystrophy phenotypically simulating a pattern dystrophy. Our findings emphasize the clinical complexity of ABCA4-associated diseases. Analysis of a larger series of cases at the clinical and genetic levels would certainly help us and be indispensable for understanding this unusual phenotype of Stargardt disease.

This study conformed to the tenets of the Declaration of Helsinki (Edimburgh, 2000) and was approved by the Institutional Review Boards of the Hospitals Virgen del Rocio and Virgen Macarena, Seville. An informed consent form was signed by all participants for clinical and molecular genetic studies (PI15_01648 and CTS1664). The patient has consented to the submission of the case report to the journal.

ACKNOWLEDGMENTS

This work was supported by Instituto de Salud Carlos III (ISCIII), Spanish Ministry of Economy and Competitiveness and co-funded by European Union (ERDF, “A way to make Europe”) [PI15-01648] and [PI1800612]; regional Ministry of Economy, Innovation, Science and Employment [CTS-1664] and regional Ministry of Health and Families [PEER-0501-2019] of the Autonomous Government of Andalusia; Foundation Isabel Gemio/Foundation Cajasol [FGEMIO-2019-01].

REFERENCES

1. Allikmets R, Singh N, Sun H, Shroyer NF, Hutchinson A, Chidambaram A, et al. A photoreceptor cell-specific ATP-binding transporter gene (ABCR) is mutated in recessive Stargardt macular dystrophy. Nat Genet. 1997;15(3):236-46. Erratum in: Nat Genet. 1997;17(1):122. Comment in: Nat Genet. 1997;15(3):224-5.

2. Maugeri A, Jeroen-Klevering B, Rorhschneider, Blankenagel A, Brunner HG, Deutman HF, et al. Mutations in the ABCA4 (ABCR) gene are the major cause of autosomal recessive cone-rod dystrophy. Am J Hum Genet. 2000;67(4):960-6.

3. Westeneng-van Haaften SC, Boon CJ, Cremers FP, Hoefsloot LH, Den Hollander AI, Hoyng CB. Clinical and genetic characteristics of late-onset Stargardt’s disease. Ophthalmology. 2012;119(6):1199-210.

4. Zerbib J, Querques G, Massamba N, Puche N, Tilleul J, Lalloum F, et al. Reticular pattern dystrophy of the retina: a spectral-domain optical coherence tomography analysis. Am J Ophthalmol. 2013; 156(6):1228-37.

5. Saksens NT, Fleckenstein M, Schmitz-Valckenberg S, Holz FG, Den Hollander AI, Keunen JE, et al. Macular dystrophies mimicking age-related macular degeneration. Prog Retin Eye Res. 2014;39:23-57.

6. Van Driel MA, Maugeri A, Klevering BJ, Hoyng CB, Cremerset FP. ABCR unites what ophthalmologists divide(s). Ophthalmic Genet. 1998;19(3):117-22.

7. Maugeri A, van Driel MA, van de Pol DJ, Klevering BJ, van Haren FJ, Tijmes N et al. The 2588G-->C mutation in the ABCR gene is a mild frequent founder mutation in the Western European population and allows the classification of ABCR mutations in patients with Stargardt disease. Am J Hum Genet. 1999;64(4):1024-35.

8. Consugar MB, Navarro-Gomez D, Place EM, Bujakowska KM, Sousa ME, Fonseca-Kelly ZD, et al. Panel-based genetic diagnostic testing for inherited eye diseases is highly accurate and reproducible, and more sensitive for variant detection, than exome sequencing. Genet Med. 2015;17(4):253-61.

9. Francis PJ, Schultz DW, Gregory AM, Schain MB, Barra R, Majewskiet J, al. Genetic and phenotypic heterogeneity in pattern dystrophy. Br J Ophthalmol. 2005;89(9):1115-9.

10. Ozkaya A, Garip R, Tarakcioglu HN, Alkin Z, Taskapil M. Clinical and imaging findings of pattern dystrophy subtypes; Diagnostic errors and unnecessary treatment in clinical practice. J Fr Ophtalmol. 2018;41(1):21-9.
