Simulated cup/disc ratio: a tool for ophthalmologists



Razão escavação/disco simulada: uma ferramenta para oftalmologistas





Carolina Pelegrini Barbosa^I; Pedro Felipe Angelini^II; Paulo Schor^I; Augusto Paranhos Junior^I

^IPhysician , Ophthalmology Department, Escola Paulista de Medicina, Universidade Federal de São Paulo - UNIFESP - São Paulo (SP), Brazil
^IIEngineer, Escola Politécnica, Universidade de São Paulo - USP - São Paulo (SP), Brazil

Correspondence address





---

ABSTRACT

PURPOSE: To evaluate and compare the observers' ability to measure simulations of cup/disc ratios (CDR) as concentric and non-concentric circles.
METHODS: In a prospective, random, and masked setting, 43 images representing the CDR spectrum from 0.2 to 0.9 for vertical and horizontal CDR measurements were developed and presented on a computer screen to 171 participants.
RESULTS: There were satisfactory agreements according to the kappa coefficient (0.755 and 0.730 for horizontal and vertical cup disc ratios, respectively) and Lin's concordance correlation (R=0.88 and R=0.86 for horizontal and vertical measurements, respectively). However, very poor agreement was found for intermediate CDR values. The worst agreement occurred when the CDR was between 0.4 and 0.6 for both the horizontal and vertical values. The kappa coefficient was 0.37 and 0.39 for 0.4 CDR (horizontal and vertical, respectively), 0.39 and 0.38 for 0.5 CDR (horizontal and vertical, respectively) and 0.45 and 0.41 for 0.6 CDR (horizontal and vertical, respectively).
CONCLUSION: Despite a good general agreement between the gold standard and the participants' responses, the absolute agreement for intermediate CDR values was very poor for both horizontal and vertical values.

Keywords: Optic disc; Glaucoma/diagnosis; Optic nerve diseases/diagnosis; Diagnostic techniques, ophthalmological; Internet/utilization; Measures

---

RESUMO

OBJETIVO: Avaliar e comparar a habilidade de observadores em medir a razão escavação/disco (CDR) por meio de figuras esquemáticas.
MÉTODOS: Em um estudo prospectivo, randomizado e mascarado, 43 imagens representado CDR horizontais e verticais entre 0,2 e 0,9 foram desenvolvidas e apresentadas em uma tela de computador para 171 participantes.
RESULTADOS: Para todos os intervalos de CDR a concordância foi satisfatória para análise kappa (0,755 e 0,730 para CDR horizontais e verticais, respectivamente) e para concordância de Lin (R=0,88 e R=0,86 para medidas horizontais e verticais respectivamente). No entanto, a concordância foi fraca para valores intermediários de CDR. A pior concordância ocorreu para CDR horizontais e verticais entre 0,4 e 0,6.
CONCLUSÃO: Apesar da boa concordância geral entre as respostas corretas e as respostas dadas pelos participantes, a concordância absoluta para valores intermediários de CDR mostrou-se muito fraca tanto para figuras horizontais como verticais.

Descritores: Disco óptico; Glaucoma/diagnóstico; Doenças do nervo óptico/diagnóstico; Técnicas de diagnóstico oftalmológico; Internet/utilização; Medidas

---





INTRODUCTION

Glaucoma is a progressive optic neuropathy characterized by a specific pattern of optic nerve head and visual field damage^(1-2). There are several different ways to classify glaucoma optic nerve damage; one of the most commonly used in clinical and epidemiological studies is the cup/disc ratio (CDR)^(3-4). However, the CDR measurement is not the optimal method to classify glaucoma damage. Foster et al. reported problems with CDR measurement reproducibility and demonstrated that the nerve rim usually exhibits an asymmetric pattern of thinning, which often does not reflect the vertical or horizontal axis⁽²⁾. Some physicians only employ the CDR classification method to report the optic nerve condition and use it to follow the rate of progression; they do not acquire images or draw the optic nerve. Jampel and Quigley reported on the lack of agreement among glaucoma experts when they independently assessed the disc change over time in patients with established visual field loss⁽⁵⁾.

The agreement in CDR evaluation between observers may be very poor, since it is a measurement that may be difficult to teach residents and requires practice to improve its ability to evaluate the condition of the optic nerve. We developed a CDR self-evaluation Internet tool for residents and previously trained physicians. In this study, we evaluated and compared the observers' ability to use this tool to measure simulations of CDR as concentric and non-concentric circles.



METHODS

The study protocol was reviewed and approved by the Institutional Review Board of the Federal University of São Paulo. It was a cross-sectional, randomized, and masked study. The tests were performed on the internet. The study group was comprised of both genders. All participants were over 20 years old and had a referred visual acuity of 20/20 with or without correction of both eyes.

To gather the data over the internet, a custom made program was designed using the Web-Service paradigm. Participants could use their personal computers to participate in the study in the same way that they would access a forum website or e-mail. All participants answered 86 objective questions related to 43 figures. They could write numbers between 0.1 to 0.9 with just one decimal fraction. Each participant was presented with: concentric circumference figures (8 figures varying between 0.2 and 0.9); decentered circumferences (11 figures varying between 0.6 and 0.8 with a displacement of 0.05 for each figure); or concentric ellipses (24 figures combining each interval of CDR). The horizontal and vertical CDR of each figure was determined. The presentation of figures to participants was random, and a colored timer was included to prevent user fatigue. This timer was deep green from 0 to 20 seconds, yellow from 20 to 30 seconds, and red after 30 seconds, so the user would know how much time was remaining.

The agreement between the measurements for different CDR intervals was evaluated using the weighted kappa. Bland-Altman analysis was also used to assess the agreement between the observed and expected CDR. The mean of the differences between the two measurements (bias) and the 95% limits of agreement (95% LOA) were calculated. Lin's concordance correlation coefficient (Rc) was also used. This value is considered to be complementary to the 95% LOA and combines both precision and accuracy measurements to determine whether the observed data significantly deviates from the line of perfect concordance (i.e., line of identity)⁽⁶⁾. All statistical analysis were performed with SAS version 9.1.3 (SAS Institute, Cary, NC) and Minitab 13.3 (Minitab Inc., PA, USA).



RESULTS

This study included 171 participants (37% male and 63% female) who performed the test including: ophthalmologists (57%); general physicians (14%); medical students (9%); and undetermined as non-doctors healthy professional (20%). The average age was 43 ± 1.2 years varying between 20 and 60 years.

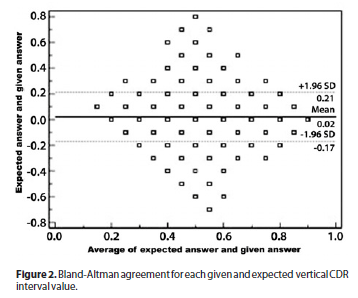

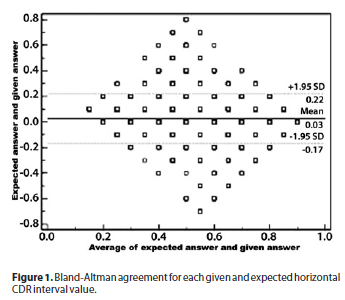

The kappa coefficient indicated a substantial overall agreement for the horizontal CDR (weighted kappa=0.755) and vertical CDR (weighted kappa=0.730). The Lin's concordance correlation coefficient also identified a satisfactory agreement for the horizontal CDR (Rc=0.8829) and vertical CDR (Rc=0.8613). However, Bland-Altman analysis (Figures 1 and 2 for horizontal and vertical measurements, respectively) showed a very poor agreement for intermediate CDR values. The worst agreement occurred when the CDR was between 0.4 and 0.6 for both horizontal and vertical values. The kappa coefficient was 0.37 and 0.39 for 0.4 CDR (horizontal and vertical, respectively), 0.39 and 0.38 for 0.5 CDR (horizontal and vertical, respectively) and 0.45 and 0.41 for 0.6 CDR (horizontal and vertical, respectively).









DISCUSSION

Cup/disc ratio measurement is commonly used to classify glaucomatous damage and monitor its progression. It is widely used in epidemiological studies^(7-11). Vitale et al. reported that the vertical CDR and Nerve Fiber Layer neural network number were the best combination to measure the neural damage resulting from glaucomatous disease because of their sensitivity and specificity⁽⁷⁾. The CDR classification is frequently employed in clinical trials. For example, the Collaborative Initial Glaucoma Treatment Study (CIGTS) used CDR classification and reported that small neuroretinal rim is a risk factor for glaucomatous optic nerve progression^(8-11). In addition, the Ocular Hypertensive Treatment Study (OHTS) also used CDR classification and showed that vertical and horizontal CDR values are important risk factors for glaucoma conversion^(9,12).

Jampel et al. proposed a statistical convention: a probability of <5% representing a significant deviation from the normal can be established. Based on this convention, the CDR above which 2.5% of the normal population lie defines the "upper limit of normal" (the other 2.5% falls below the normal distribution). Using the 97.5^th percentile enables one to avoid making the assumption that the CDR is normally distributed (it was found to be Gaussian in some studies but not in others). Jampel et al. suggested using the 97.5^th percentile value for CDR asymmetry as a second criterion for abnormality.

It would be very useful if the CDR measurement was in good agreement between observers. An important diagnostic parameter should be very reproducible; however, there is a poor agreement on subjective assessment of the optic disc even among experts⁽¹³⁾. Therefore, standardized criteria must be developed for assessing glaucomatous optic disc damage⁽¹⁴⁾. Spaeth proposed a DDLS (Disc Damage Likelihood Scale), a method that focuses on the optic disc size and the region of the optic nerve that is actually undergoing damage (neuroretinal rim) using a scale of the narrowest rim disc ratio that simultaneously accounts for the overall size of the optic nerve⁽¹⁵⁾.

The CDR classification method has significant problems, especially its poor reproducibility^(16-19). For example, some patients have small CDR ratios but significant visual field loss, whereas some have large CDR ratios with little visual field loss⁽²⁾. Finally, while the CDR is of some value in patients with concentric cupping⁽¹⁵⁾, it may be seriously misleading when the loss of the rim is limited to a single sector, as with a focal notch. In this latter situation, the CDR ratio may be recorded as small, but the disc and visual field may be badly damaged. Another problem with CDR classification is wide variability in optic disc morphology between individuals. Jonas et al. confirmed that there are healthy eyes with rather small optic discs and healthy eyes with very large optic discs, as concluded from their study on a South Indian population⁽²⁰⁾. Therefore, multiple studies have reported on different techniques to classify and measure the CDR. For example, Armaly proposed a useful classification system to describe the optic nerve, and this system exhibited a good correlation with visual field damage^(21-22). However, this classification system was limited by issues of focal rim narrowing and physiological variability based on the disc size^(16,23).

Our study showed a lack of agreement among intermediate CDR values; therefore, the CDR measurement appears more useful for extreme values. However, extreme values are not as important in clinical practice. Our results are very important as they indicate a significant lack of agreement between individuals examining virtual optic nerve samples. It is expected that there would be an even worse agreement with real optic nerve samples.

Some studies have shown that the variability on measure the CDR is reduced with experience^(24-25) and some teaching programs were developed trying to improve this tool⁽²⁶⁾. The group of this study has a certain variety because not only ophthalmologists performed the test but also general physicians and medical students. So this sample could partially justify the results of this study and a teaching tool could help our observers, but it was not the aim of this study.

The primary reason for performing this study is the wide variability between optic discs within the general population, in terms of form and size^(27-28). In addition, agreement between medical practitioners in measuring the CDR using stereoscopic images is not optimal⁽²⁵⁾, as confirmed by our study.



CONCLUSIONS

The results from this study show that the CDR simulation test indicated poor agreement between observers and standard CDR values, especially for intermediate values. This test demonstrates that analysis of CDR is not intuitive and that training and reference images may be necessary to improve use in clinical applications.



ACKNOWLEDGEMENT

Supported by Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) - Brazil.
